產品名稱：
美制JIC外螺紋/ 輕系列法蘭直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

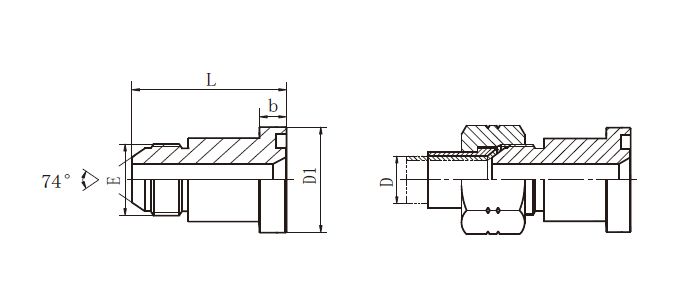

| 訂貨號 | 螺 紋 | 法蘭型號 | O形圈 | 尺 寸 | ||||
| E | b | D1 | L | |||||
| AJFL-08 | 3/4"X16 | 1/2" | O210 | 6.73 | 30.2 | 43.5 | ||
| AJFL-08-12 | 3/4"X16 | 3/4" | O214 | 6.73 | 38.1 | 45.4 | ||
| AJFL-10-08 | 7/8"X14 | 1/2" | O210 | 6.73 | 30.2 | 48 | ||
| AJFL-10-12 | 7/8"X14 | 3/4" | O214 | 6.73 | 38.1 | 48 | ||
| AJFL-12-08 | 1.1/16X12 | 1/2" | O210 | 6.73 | 30.2 | 49 | ||
| AJFL-12 | 1.1/16X12 | 3/4" | O214 | 6.73 | 38.1 | 50.5 | ||
| AJFL-12-16 | 1.1/16X12 | 1" | O219 | 8 | 44.4 | 52.2 | ||
| AJFL-16-12 | 1.5/16"X12 | 3/4" | O214 | 6.73 | 38.1 | 52 | ||
| AJFL-16 | 1.5/16"X12 | 1" | O219 | 8 | 44.4 | 53.4 | ||
| AJFL-16-20 | 1.5/16"X12 | 1.1/4" | O222 | 8 | 50.8 | 52.2 | ||
| AJFL-20-16 | 1.5/8"X12 | 1" | O219 | 8 | 44.4 | 54.5 | ||
| AJFL-20 | 1.5/8"X12 | 1.1/4" | O222 | 8 | 50.8 | 53.1 | ||
| AJFL-20-24 | 1.5/8"X12 | 1.1/2" | O225 | 8 | 60.3 | 56 | ||
| AJFL-24-20 | 1.7/8"X12 | 1.1/4" | O222 | 8 | 50.8 | 56.5 | ||
| AJFL-24 | 1.7/8"X12 | 1.1/2" | O225 | 8 | 60.3 | 59.2 | ||
| AJFL-24-32 | 1.7/8"X12 | 2" | O228 | 9.53 | 71.4 | 60 | ||
| AJFL-32 | 2.1/2"X12 | 2" | O228 | 9.53 | 71.4 | 66.3 | ||
注：螺母及襯套需另行訂貨,配用螺母及襯套分別選用SJN、SJS。
